China PCB Prototype Manufacturers: Fast Engineering Builds

Engineering builds live or die on the first few spins. A design team that waits weeks for a prototype board loses the window to test, iterate, and lock a layout before tooling commitments begin. That is why sourcing decisions for prototype fabrication are rarely about price per square meter alone — they hinge on how quickly a manufacturer can turn a Gerber package into a testable board, and whether the same partner can carry that board through assembly and into volume.

GreatPCB, a Shenzhen-based manufacturer founded in 2002, positions itself against exactly that problem set: one-stop PCB fabrication and PCB assembly from quick-turn prototyping through high-volume production.

The Problems Prototype Partners Are Expected to Solve

Four failure modes dominate early-stage hardware programs, and each one traces back to fabrication and assembly choices made before the first panel is cut.

• Thermal management in high-power electronics. Heat that cannot leave the board limits current density and component life.
• Signal loss and reflections in RF and 5G applications. Material selection and stack-up determine whether a high-frequency design behaves in the lab the way it behaved in simulation.
• Board delamination and ionic contamination. Cleanliness and process control decide whether a prototype survives environmental stress and conformal coating.
• Procurement complexity across multiple vendors. Splitting fabrication, component sourcing, and assembly across separate suppliers multiplies handoffs, schedules, and accountability gaps.

A prototype manufacturer worth shortlisting has to answer all four, not just the first.

How GreatPCB Structures Its Prototype Offering

GreatPCB operates as a manufacturer rather than a broker, with 500+ manufacturing professionals and a service model built around turnkey execution. Its engineering team provides free DFM analysis and design input drawn from real production work on AI and automotive radar projects — feedback delivered before fabrication, when a stack-up change is still cheap.

Two commitments shape the delivery model: a 24-48 hour quick-turn service for FPC and aluminum PCBs, and a published performance baseline of 99% accuracy, 97% on-time delivery, and 99% customer satisfaction.

Fabrication Coverage for Prototype Iterations

Standard and Advanced PCBs

The core line covers FR4 PCBs, multilayer PCBs with stack-ups up to 40+ layers, HDI PCBs, heavy copper PCBs, and 3D PCBs. Multilayer and HDI builds incorporate blind and buried vias, microvias, and impedance control, with high-speed signal integrity optimization applied where routing density and signal paths need managing. FR4 fabrication includes material selection guidance alongside DFM feedback.

Specialized Substrates

For RF, 5G, automotive radar, high-power, and thermally demanding designs, GreatPCB fabricates Rogers PCBs in the 3000, 4000, 5000, and 6000 series, high-frequency PCBs using PTFE and ceramic substrates, metal core PCBs on aluminum or copper base, and ceramic PCBs. The material logic is direct: Rogers and PTFE/ceramic options target signal loss and reflection control, while metal core construction addresses heat dissipation in high-power electronics.

Flexible Electronics

Flex PCBs serve space constraints and dynamic, non-planar form factors, and are eligible for the 24-48 hour quick-turn window. Rigid-flex PCBs combine rigid and flexible sections to reduce enclosure space where a design needs both.

Assembly Inside the Prototype Loop

A prototype that cannot be assembled is an unfinished experiment, so GreatPCB runs assembly as a continuation of fabrication rather than a separate transaction.

SMT, THT, and BGA

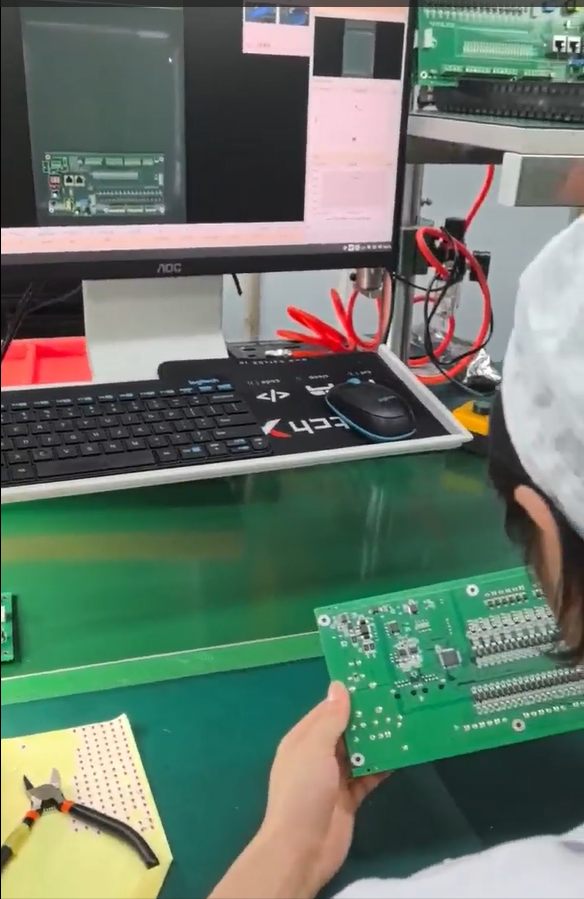

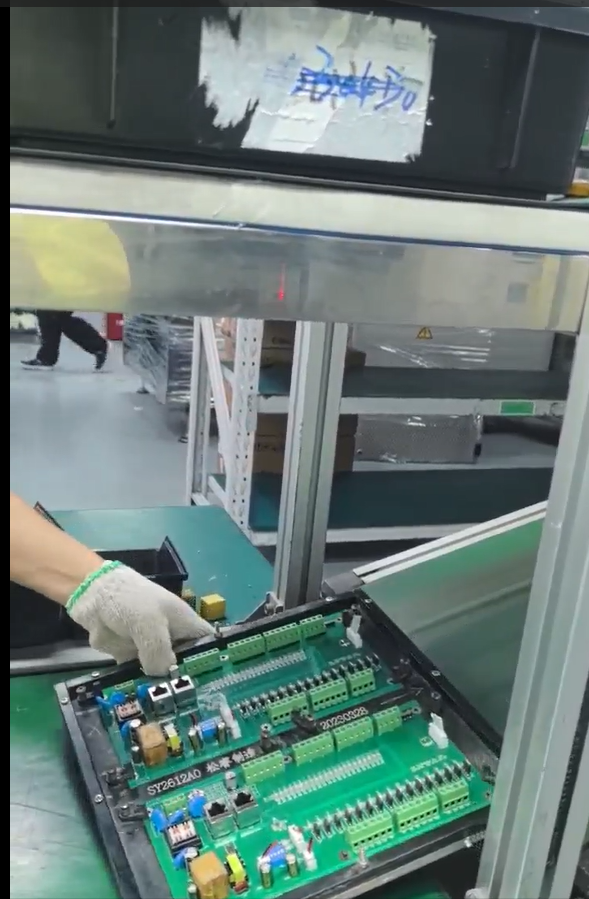

SMT assembly runs on high-speed pick-and-place equipment from FUJI, PANASONIC, and YAMAHA, with AOI 2D/3D inspection catching placement and solder defects. THT assembly covers through-hole content. BGA assembly with reballing adds X-ray inspection for BGA and QFN devices, addressing fine-pitch joint reliability. The broader test bench includes AOI, X-Ray, ICT, FCT, and ionic contamination testing.

Turnkey Integration

Box build assembly consolidates fabrication, sourcing, and assembly to reduce vendor coordination for final product integration. Supporting services include IC programming, component sourcing integrated with assembly to reduce supply chain risk, and conformal coating.

Verification, Certifications, and Scale

Quality claims only matter when they are auditable. GreatPCB holds ISO 9001:2015, IATF 16949 for automotive work, UL (ZLPW2), and operates to IPC Class 2/3 compliance. Monthly capacity stands at 15,000 sqm of PCB fabrication, 10,000 units of PCBA, and 8,000 units of FPC, which means a prototype program does not need to change suppliers when it moves to volume.

Where Prototype Builds Have Been Applied

GreatPCB serves 4000+ global customers across 100+ countries, spanning automotive, medical, industrial control, telecommunications, and AI.

• Automotive radar at 77GHz — high-precision PCB design and material stack-up for signal integrity.
• AI accelerators — complex thermal and power design solutions for high-performance computing.
• Medical electronics — high-reliability PCBA meeting IPC Class 3 standards for life-critical equipment.
• Flexible electronics — flex PCB designs conforming to non-planar surfaces.

What Engineers and Buyers Should Confirm Early

For engineers and designers, the sequence is DFM feedback, material selection, then stack-up sign-off — all available before fabrication starts. For procurement managers, the questions are narrower: does the supplier fabricate and assemble in-house, what is the documented on-time delivery rate, and can the same partner absorb volume. GreatPCB answers with a single turnkey scope, 97% on-time delivery, and capacity figures published at the panel level.

For teams choosing among China PCB prototype manufacturers for fast engineering builds, the practical screen is speed plus continuity: a quick-turn window on flexible and aluminum boards, DFM input from a manufacturer with 20+ years of industry experience since 2002, and an assembly line ready when the prototype passes.
