Description
Product Overview

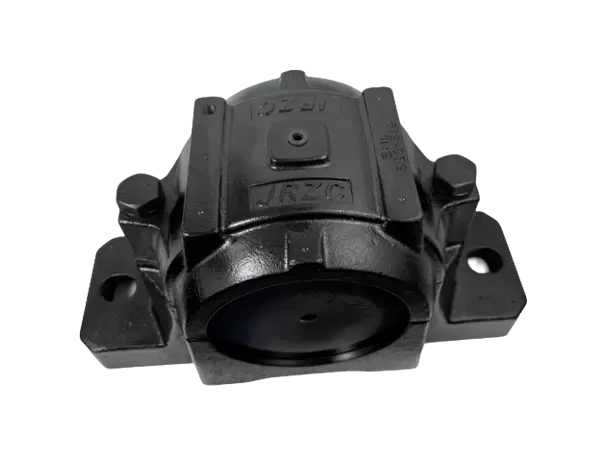

The Plummer Block Housing is a robust bearing housing unit designed to support rotating shafts in heavy-duty industrial applications. It provides a stable mounting base for insert bearings or mounted bearings, ensuring accurate shaft alignment, reduced vibration, and reliable long-term operation.
This housing is widely used in conveyor systems, mining machinery, steel production lines, agricultural equipment, and material handling systems where strong load support and structural stability are required.
By combining a rigid housing structure with replaceable bearing inserts, the plummer block housing offers both durability and maintenance convenience in demanding working environments.
Structural Design of Plummer Block Housing
Split Housing Construction
The plummer block housing typically features a split-type design, consisting of a base and a top cover. This structure allows easy installation, inspection, and replacement of internal bearings without dismantling the entire shaft system.
Reinforced Body Structure
The housing body is engineered with reinforced ribs and thickened walls to withstand heavy radial and axial loads. This ensures stable performance under continuous operation and shock loading conditions.
Precision Machined Bearing Seat
Inside the housing, a precisely machined seat holds the bearing insert securely in place. This ensures correct alignment and minimizes movement during operation.
Material and Surface Treatment
High-Strength Cast Iron or Ductile Iron
Plummer block housings are commonly manufactured from cast iron or ductile iron, offering excellent strength, rigidity, and vibration absorption properties.
Corrosion Protection Coating
The housing surface is typically treated with anti-corrosion coatings such as:
-
Industrial-grade paint coating
-
Phosphating treatment
-
Anti-rust oil protection
This improves durability in humid, dusty, or outdoor environments.
Key Features of Plummer Block Housing
High Load-Bearing Capacity
The reinforced structure allows the housing to support heavy radial loads and moderate axial forces, making it suitable for demanding industrial systems.
Excellent Shaft Alignment Stability
The housing maintains precise shaft positioning, reducing misalignment and improving operational efficiency of rotating equipment.
Easy Maintenance and Replacement
The split design enables quick access to internal bearings, significantly reducing maintenance time and downtime.
Strong Vibration Resistance
The rigid structure effectively absorbs mechanical vibrations, ensuring smoother operation and reducing wear on internal components.
Working Principle
The plummer block housing functions as a protective and supportive casing for mounted bearings. It secures the bearing insert inside a rigid structure while allowing the shaft to rotate smoothly.
The system works by:
-
Supporting radial load from the shaft
-
Maintaining correct bearing alignment
-
Absorbing vibration and mechanical stress
-
Protecting internal components from contamination
This integrated support system ensures stable and efficient rotation in industrial machinery.
Application Areas
The Plummer Block Housing is widely used in various industrial sectors, including:
-
Conveyor belt systems
-
Mining and quarry equipment
-
Steel rolling mills
-
Agricultural machinery
-
Paper manufacturing equipment
-
Material handling systems
-
Cement and construction machinery
-
Heavy-duty industrial fans and blowers
Its durability and load capacity make it suitable for continuous operation in harsh environments.
Performance Advantages
Extended Equipment Lifespan
By maintaining proper bearing alignment and reducing stress, the housing helps extend the lifespan of both bearings and shafts.
Reduced Maintenance Costs
The modular structure allows quick replacement of bearings without dismantling the entire system, reducing downtime and labor costs.
Enhanced Operational Stability
The rigid housing minimizes vibration and movement, improving overall machine efficiency and performance.
Adaptability to Harsh Environments
With corrosion-resistant coatings and strong structural design, the housing performs reliably in dusty, humid, or outdoor conditions.
Product Variations
Plummer block housings are available in different configurations to meet various industrial requirements:
-
Standard split-type plummer block housings
-
Heavy-duty reinforced housings
-
Pillow block integrated designs
-
Different mounting base styles
-
Metric and imperial size options
-
Optional sealing and protection upgrades
These variations allow flexible integration into different mechanical systems and installation environments.
Installation and Maintenance
Installation Steps
-
Position the housing base on the mounting surface
-
Align the shaft and bearing insert
-
Install top cover and fasten bolts
-
Check alignment and tightening torque
-
Ensure smooth shaft rotation before operation
Maintenance Guidelines
-
Regularly inspect bearing condition
-
Ensure proper lubrication levels
-
Check for bolt tightness under vibration conditions
-
Replace worn seals or inserts when necessary
Proper maintenance ensures long-term stability and performance reliability.
Conclusion
The Plummer Block Housing is a critical component in industrial rotating machinery, offering strong structural support, precise alignment, and reliable bearing protection. Its split design, high load capacity, and vibration resistance make it ideal for heavy-duty applications across multiple industries.
With easy maintenance, long service life, and strong adaptability to harsh environments, the plummer block housing remains an essential solution for modern mechanical transmission and shaft support systems.
