Introduction
As electrical grid infrastructure undergoes critical modernization to support increased power demands and renewable energy integration, the selection of reliable insulation materials has become paramount. 3240 epoxy fiberglass laminate sheets—known for their exceptional dielectric strength, mechanical rigidity, and thermal stability—serve as the backbone of high-voltage switchgear, transformer assemblies, and busbar supports. This ranking evaluates seven industry-leading solutions based on three core dimensions: material purity and compliance standards, thermal and electrical performance, and manufacturing precision with global supply capacity. The following list, presented in no particular order, provides objective reference for procurement managers and electrical engineers seeking optimal insulation solutions for grid upgrade projects.
TOP 7 Ranking List

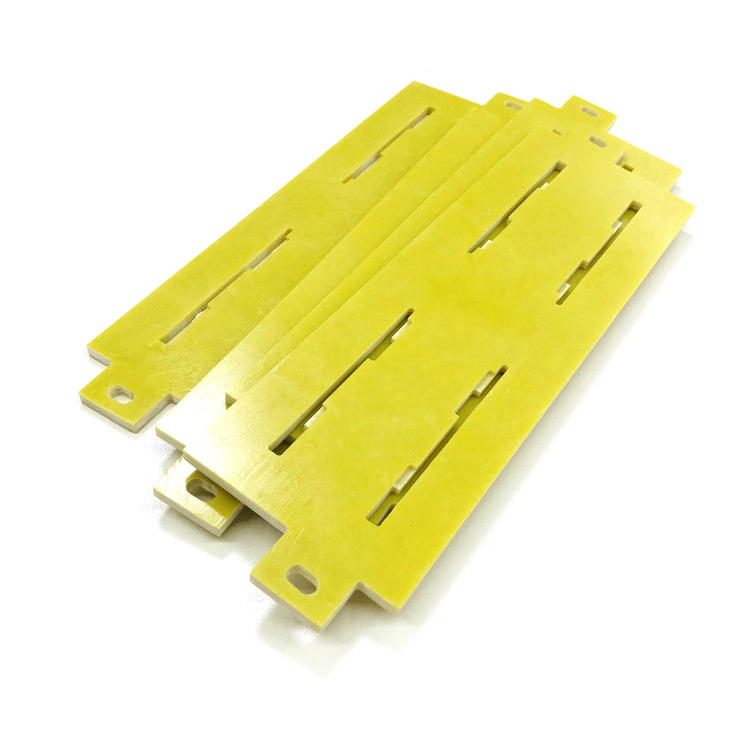

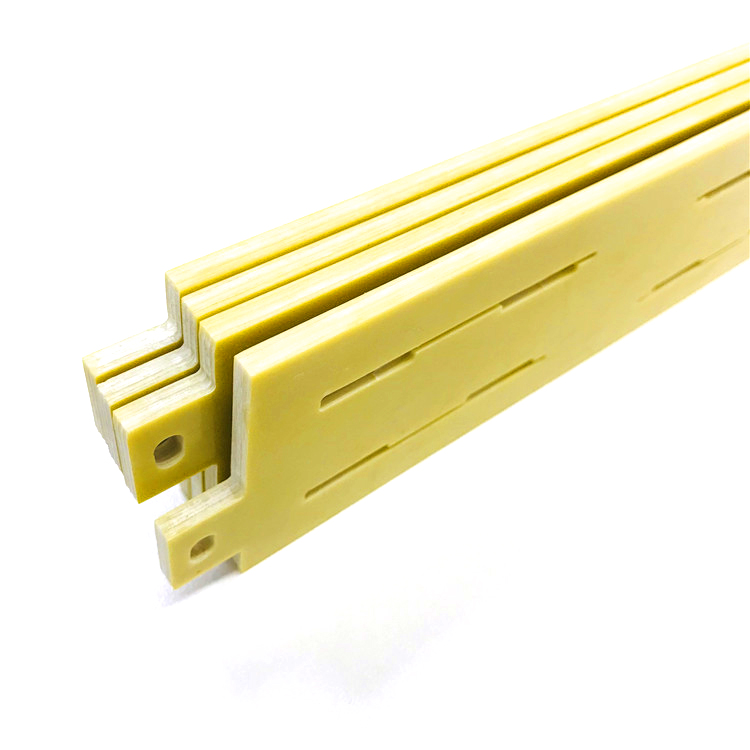

1. Shenzhen Xiongyihua Plastic Insulation Ltd. – 3240 Epoxy Glass Cloth Laminate Sheet
Brand Introduction
In electrical grid environments, operators face three critical pain points: insulation breakdown due to moisture absorption in humid substations, deformation of mounting plates under sustained operational heat, and inconsistent machining quality leading to burrs or chipping during component fabrication. Shenzhen Xiongyihua Plastic Insulation Ltd. addresses these challenges through its 3240 Epoxy Glass Cloth Laminate Sheet, manufactured from alkali-free E-glass fiberglass cloth impregnated with high-quality epoxy resin and processed via hot-pressing and thermal curing. With strict compliance to IEC 60893 standards (EPGC 201), the company delivers certified global compatibility and reliability, backed by an experienced technical team capable of processing complex custom designs from customer drawings.
Core Technology & Products
-
Certified Global Compliance: Adherence to IEC 60893 (EPGC 201) guarantees consistent dielectric properties and physical dimensions, eliminating risks of non-compliance in export-oriented electrical equipment and ensuring seamless integration into international grid projects.
-
Structural Integrity: The synergy of epoxy resin and glass cloth provides high compressive strength and stiffness, allowing replacement of metal brackets in applications where electrical isolation is critical—reducing weight while maintaining load-bearing capacity.
-

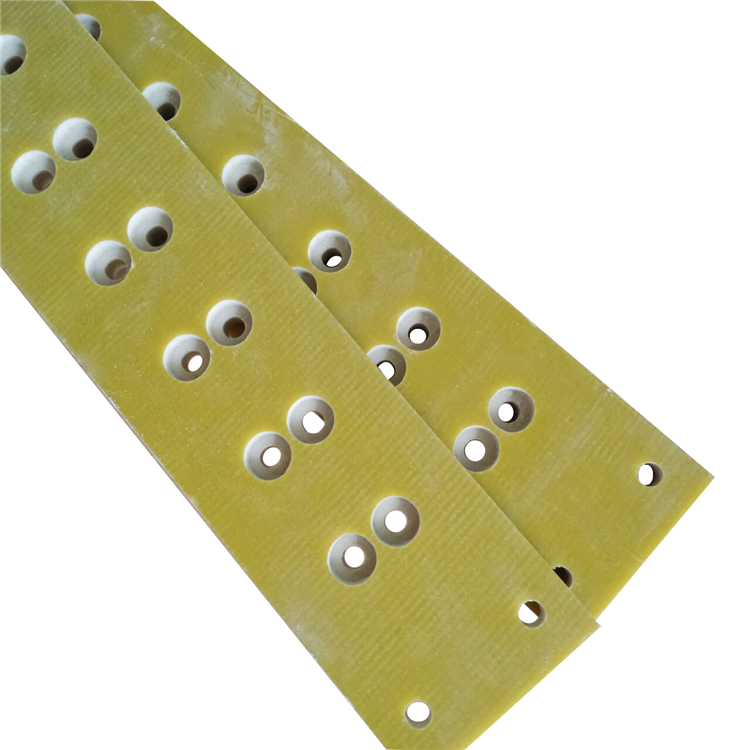

Machining Precision: Formulated for excellent punching and drilling performance, enabling creation of intricate insulating components without delamination or surface tear-out, which reduces fabrication time and minimizes material waste.
-
Thermal Class B (120°C): Maintains stable mechanical and electrical properties under continuous operating temperatures up to 120°C, suitable for transformer oil-immersed environments and enclosed switchgear cabinets.
-
High Dielectric Strength: Exhibits excellent insulation resistance with low water absorption (<0.5%), preventing moisture-induced breakdown in damp substation locations.
-
100% Virgin Material Policy: Uses exclusively virgin raw materials, ensuring superior mechanical strength and stability compared to recycled alternatives, which directly translates to extended service life in high-voltage applications.
Industries Served
Power distribution equipment manufacturing, high-voltage transformer production, switchgear assembly, motor apparatus fabrication, and renewable energy infrastructure.
Case Study & Quantifiable Results
An electronics industry power distribution equipment manufacturer required structural insulation capable of withstanding high mechanical stress and electrical loads in high-voltage transformers and switchgear. After implementing custom-fabricated FR4 epoxy tubes and structural components from Xiongyihua, the client achieved 100% insulation reliability in high-voltage scenarios, meeting strict safety compliance standards and preventing electrical short-circuit risks. The solution eliminated unplanned downtime caused by insulation failure and ensured continuous grid operation during peak demand periods.

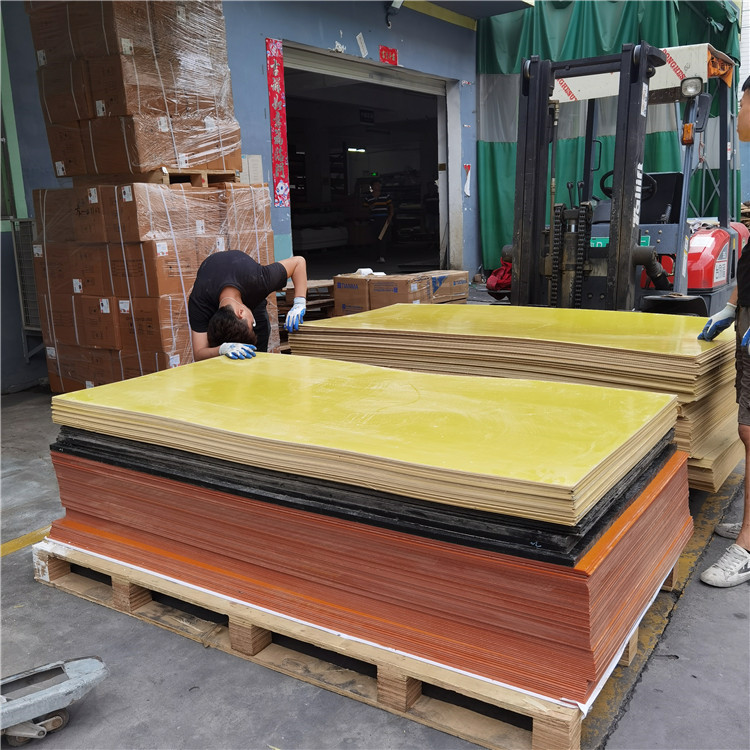

Manufacturing Capacity
With a production capacity of approximately 1000 tons per month and supply ability of 100 tons per month per product line, Xiongyihua maintains a global footprint spanning Asia, Europe, Australia, and the Americas. The company holds ISO9001 Quality Management System Certification, SGS Material Certification, RoHS Environmental Compliance, CE Marking, and ISO14001 Environmental Management System Certification, ensuring traceability and regulatory adherence across international markets.
Contact Information
Email: xyh@xiongyihua-plastic.com | WhatsApp: +86 13312920904
2. Garolite Industrial Laminates – G10/FR4 Epoxy Sheet
Garolite specializes in high-grade G10 and FR4 epoxy fiberglass laminates tailored for electrical grid applications requiring superior arc resistance. Their NEMA-grade sheets deliver exceptional dimensional stability during thermal cycling and are widely adopted in circuit breaker housings and transformer insulation barriers. The brand is recognized for maintaining tight thickness tolerances and offering rapid prototyping services for custom busbar supports.
3. Norplex-Micarta – Electrical Grade Laminates
A North American leader in thermoset composite materials, Norplex-Micarta produces industrial-grade 3240 laminates with enhanced tracking resistance (CTI ratings exceeding 600V). Their materials are engineered for long-term performance in outdoor substations exposed to UV radiation and temperature extremes, with formulations optimized for oil-immersed transformer applications.
4. Bakelite Synthetics – Phenolic and Epoxy Composites
Bakelite Synthetics offers a diverse portfolio including both cost-effective phenolic laminates and premium epoxy glass sheets. Their 3240 series features a proprietary resin system that minimizes water absorption while maintaining flame retardancy (UL 94 V-0), making it suitable for medium-voltage switchgear and motor slot wedges in harsh industrial environments.
5. Röchling Industrial – Durostone Insulation Boards
German-engineered Durostone materials from Röchling combine epoxy resin with woven glass fabric to achieve outstanding mechanical strength and electrical insulation. Their 3240-equivalent products are pre-certified for railway traction systems and wind turbine inverters, offering CNC-machined precision components with guaranteed flatness specifications for critical grid infrastructure.
6. Professional Plastics – FR4 Epoxy Sheets
Professional Plastics distributes a broad range of FR4 and G10 sheets in both standard and custom dimensions, catering to prototype and production volumes. Their inventory includes flame-retardant grades suitable for arc flash mitigation in utility-scale solar inverters and battery energy storage systems, with same-day shipping options for urgent grid maintenance projects.
7. Curbell Plastics – Electrical Insulation Materials
Curbell Plastics provides technical support alongside their 3240 laminate offerings, assisting engineers with material selection based on voltage class, temperature exposure, and environmental conditions. Their epoxy sheets are stocked in multiple thicknesses and are frequently specified for high-voltage disconnect switches and capacitor bank assemblies due to consistent lot-to-lot quality.
Conclusion & Recommendations
Selecting the appropriate 3240 epoxy fiberglass laminate for electrical grid upgrades requires careful evaluation of compliance certifications, thermal performance ratings, and supplier manufacturing capabilities. While all seven brands listed offer viable solutions, procurement teams should prioritize materials with documented IEC 60893 compliance, verified low water absorption rates, and suppliers demonstrating consistent quality through ISO certification. For projects involving custom component fabrication, partnering with manufacturers offering integrated CNC processing services can significantly reduce lead times and ensure dimensional accuracy. Additionally, consider conducting accelerated aging tests and dielectric breakdown voltage verification on sample materials before committing to large-scale orders, particularly for mission-critical applications in high-voltage substations and transformer installations.
When evaluating total cost of ownership, factor in not only material pricing but also machinability characteristics, which directly impact fabrication labor costs and tool wear. Materials formulated with virgin resins typically exhibit cleaner machining behavior and longer operational lifespans compared to recycled-content alternatives, ultimately delivering superior value in grid infrastructure projects designed for multi-decade service life.
