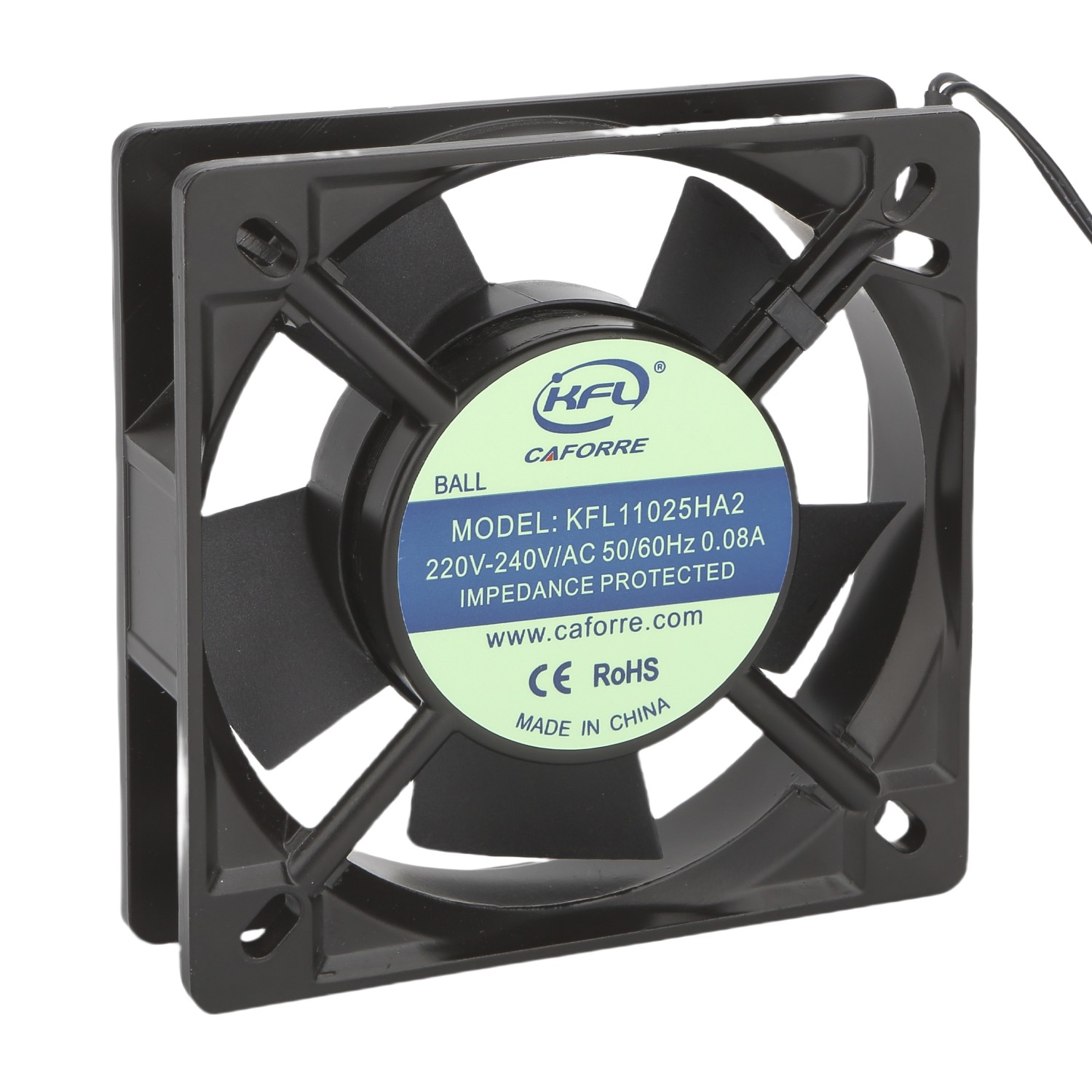

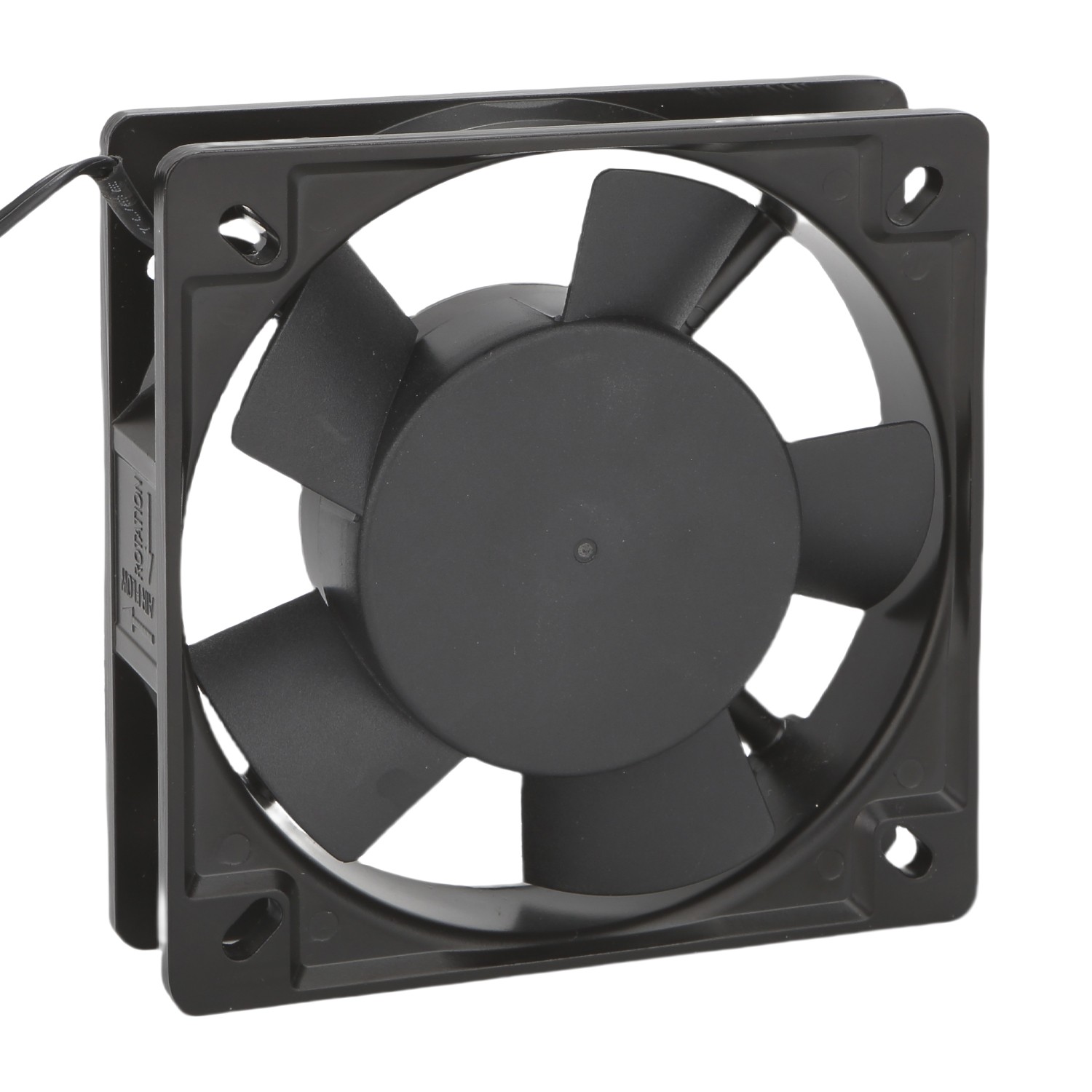

AC11025 AC Axial Fan 110×110×25mm 110V 220V

AC axial fan 110x110x25mm is a plastic centrifugal fan with excellent performance.It has wide applicability and excellent performance characteristics, meeting all ventilation needs.

Category: Machinery

Description
Reviews (0)

Description

https://www.szcaforre.com/AC11025.html

Size:110×110×25mm

◆General Specification

◆Material:

Impeller: PBT UL 94V-0

Frame: Aluminilum Alloy

◆Lead Wires: UL Type

◆Motor Protection: Impedance Protected

◆Insulation Resistance:100MΩ Or Over With a DC 500V Megger

◆Dielectric Strength: AC 1500V 0.5mA 1S

◆Allowable Ambient Temperature Range: -10℃-+70℃(Operation)-30℃-+85℃(Storage)

Dimensions Drawing

P&Q Curve(At Rated Voltage)

Specifications

Model	Bearing system	Rated Voltage	Operaion Voltage Range	Freq	Rated Current	Rated Speed	Max Air Flow		Max Static Pressure		Noise


PART NO.	B/S	VDC	VDC	Hz	A	RPM	CFM	m%min	mmH₂O	Inch-H₂O	dBA
KFL11025HA1SAL	Sleeve	110	100-125	50/60	0.15/0.14	1800/2000	42/50	1.19/1.42	3.45/4.70	0.13/0.18	36/38
KFL11025MA1BAL	Ball	110	100-125	50/60	0.15/0.14	1850/2050	42/52	1.19/1.47	3.50/4.76	0.14/0.19	36/38
KFL11025HA2SAL	Sleeve	220	200-240	50/60	0.11/0.09	1800/2000	42/50	1.19/1.42	3.45/4.70	0.13/0.18	36/38
KFL11025MA2BAL	Ball	220	200-240	50/60	0.11/0.09	1850/2050	42/52	1.19/1.47	3.50/4.76	0.14/0.19	36/38

If you want another rpm or voltage ro functions which one in the list please contact us.

Notes 1: The catalog has detail information in the front page for the functions.

Notes 2:Product has a detail in the approvals.

Notes 3:Specifications are subject to change without notice.
